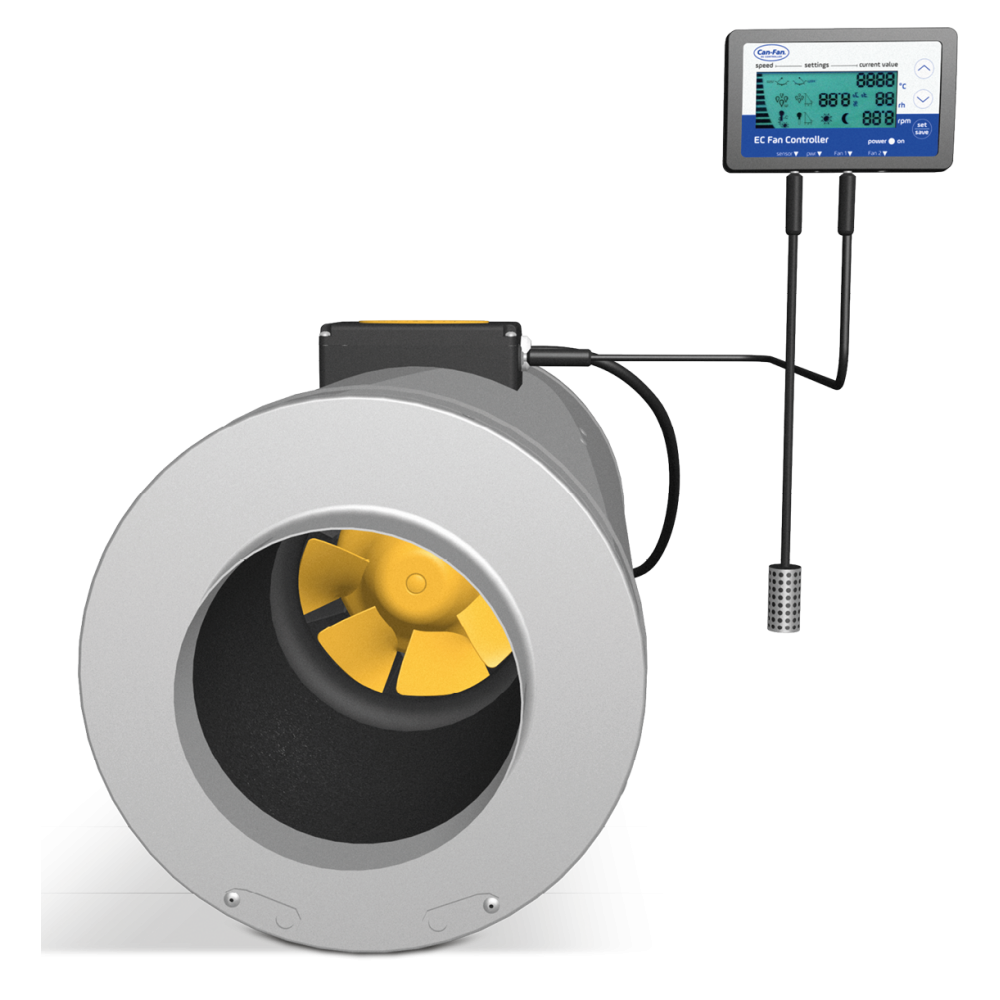

Can-Filters - Can-Fan Q-Max EC 160/746

Q-Max series with EC technology is a turbine or mixed flow blower with maximum aerodynamic efficiency and lowest energy consumption due to the new EC technology and the 3D rotor-stator system. The Q-Max EC incorporates a Max Fan Pro Series EC engine in a silencer. Powerful despite the quiet operation of the Q-Max EC is achieved by uniform turbulence-free airflow and the continuous, completely interference-free Plug´n´Play Can-Fan speed or speed and temperature controller. Up to 10 EC fans can be connected and controlled immediately to the Can-Fan EC controller.

The Q-Max series is compact, easy to use and clean and is manufactured in Germany.
Integrated hangers ensure easy installation.
The entire range meets the compulsory ErP requirements for all EU-marketed fans.
Technical specifications:

• Power: 230V
  Power Consumption: 0.6A
  Ambient temperature: 40 ° C
  Speed control: 0 to 10V
  Engine protection: TEC
  Insulation class: F
  Engine: EC
  Power: 746m3 / h
  Connection: 160mm
  Power: 67W
  Frequency: 50Hz
