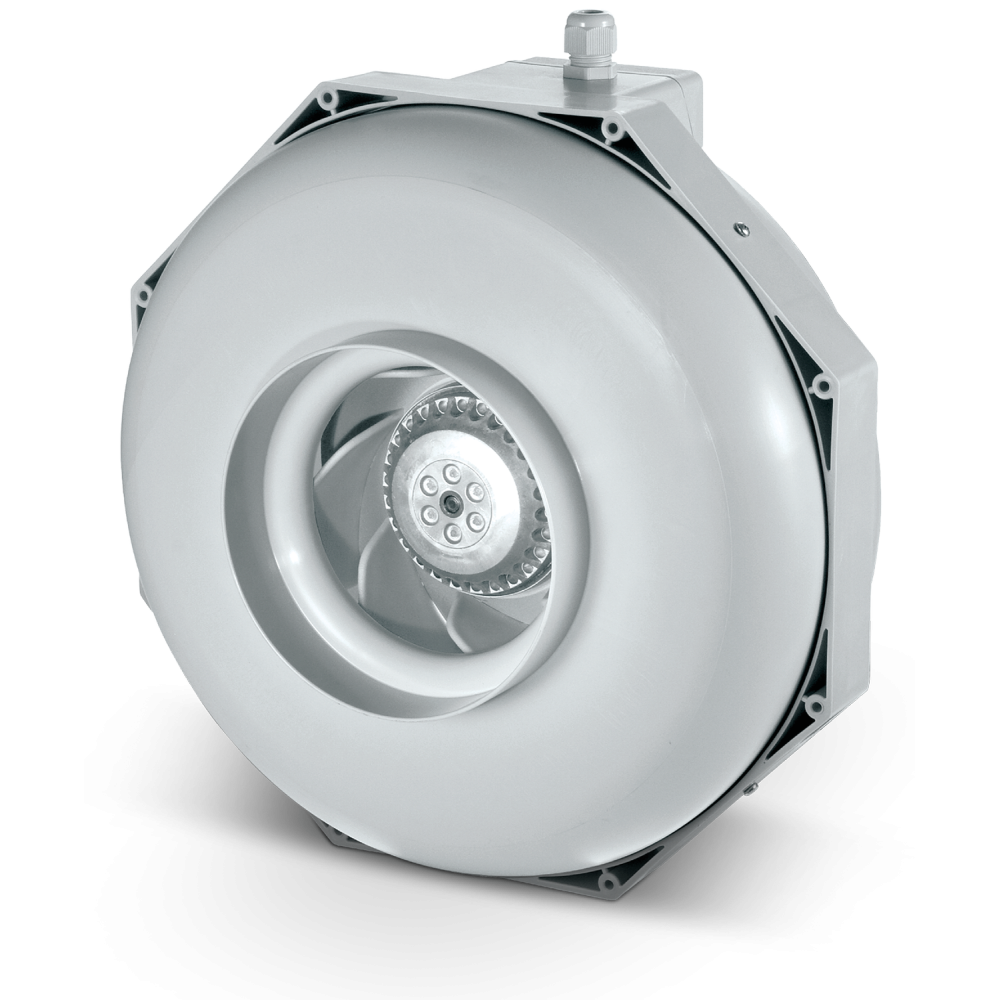

Can-Filters - Can-Fan RK 100/270 Tube fan

Particularly suitable for connection to active charcoal
filters.
Large inlet and outlet connectors, small pressure drop
even under load.
Throughput volume 270 m3.

Compact backward curved tube fan with plastic housing. This tube fan is speed controllable and has an integrated thermal switch.

        Connection d=100mm
        Not wired.


A separate power cable with CH plug is required. This is not included in the scope of delivery.

Technical data:

• Voltage/frequency: 230 V / 50 Hz
• Phases: ~ 1
• Rated power: 70 W
• Rated current: 0,3 A
• Air volume: 270 m3/h
• Speed min-1 (max): 2670
• Fluid temperature °C: 70
• Fluid temperature at speed control °C: 70
• Sound pressure level at 1 m dB: 50
• Weight: 2.25 kg
• Insulation class, motor: F
