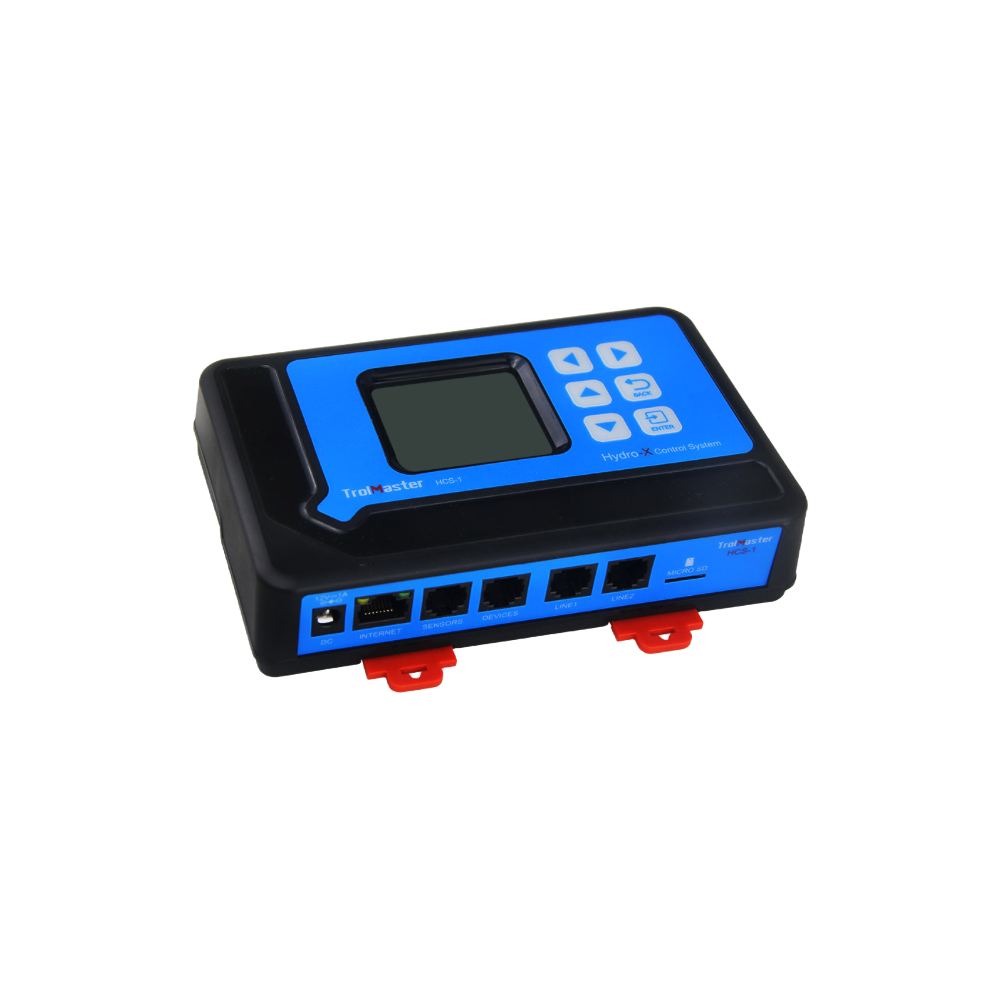

TrolMaster - Hydro X Controller

The Hydro-X system is a professional single zone environmental controller. It is a fully customisable modular system. Installation is simple and the system is easy to expand.

The Hydro-X system can control almost everything in a growing area. It offers more than 17 different types of control modules for connection to equipment such as HVAC systems, mini-split AC, dehumidifiers, humidifiers, CO2, HID and LED lighting, irrigation pumps/valves, exhaust fans and more.

To avoid interference in the growing environment, all sensors and control modules are hard-wired via standard RJ12 cables and splitters, making installation as easy as plug-and-play.

A 3-in-1 temperature / humidity / light sensor, a CO2 sensor, smoke and water detectors can be chained to the sensor channel. Up to 5 smoke detectors and 5 water leak sensors can be connected. A new PAR meter has been released to measure light intensity so that the system can dim the grow lights according to the PPFD setting.

There are 2 lighting control channels to control up to 512 lights on two separate channels. The system can also operate different lighting systems simultaneously. Almost ALL lighting systems on the market can be controlled by the system via different lighting control adapters. Currently we have LMA-11 for Phantom; LMA-12 for Dimlux; LMA-13 for Sun System; LMA-14 for HIDs like Gavita / Nanolux / Luxx / Growers Choice / Illuminar / PL and LEDs like Fluence / Next Light / Spectrum King; LMA-15 for DLI; LMA-T for ThinkGrow.

All other controlled modules are connected to the device channel. For temperature control: we have TS-1 / TS-2 for HVAC systems; ARS-1 for Mini Split System; DST-1 / DST-2 for temperature controlled outlets. For humidity control: We have HS-1 for most commercial dehumidifiers with a low voltage control. DSH-1 / DSH-2 for humidity controlled sockets. There is also a CO2 controlled outlet (DSC-1), a time controlled outlet (DSP-1) and a dry contact controlled outlet (DSD-1).

To vary the lamps you also need:
1. F 0-10V light control adapter.
2. waterproof converter cable from RJ12 to PushLock
Input voltage: 100-240, 50/60 Hz
Certifications: ETL / FCC / CE
3-in-1 probe (Temp / Wet / CO2): Maximum 1 per set
CO2 sensor: Maximum 1 per set
Smoke detector: Maximum 5 pieces per set
Variation line: 300m max
40 HPS 1000 watts per line with the same power.
Total 2 lines: 80 HPS lamps total 1000 W.
Variation: 0-10V
256 LED lamps per line at the same wattage.
Total 2 lines: 512 LED lamps in total.
Water detectors: Maximum 5 per set
Temp Station Stations: Maximum 4 per set
Wet Stations: Maximum 2 pieces per set
Stations with CO2 units: Maximum 2 per set
Program peripheral stations: Maximum 9 pieces per set
