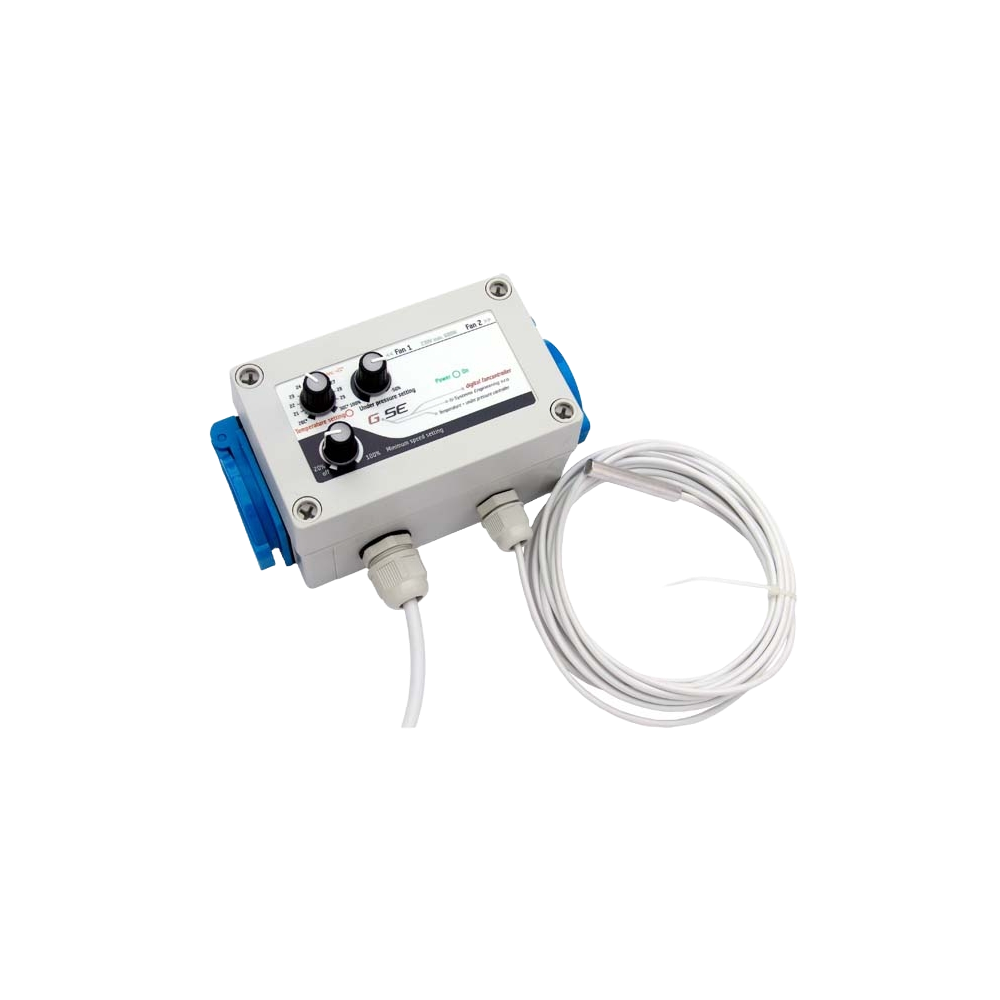

GSE - Temperature and minimum speed controller Negative Pressure, 2x1A

The digital fan controller is a temperature dependent speed controller for rooms with air flow in and out. The fan controller keeps the room temperature constant and under pressure to prevent odor from escaping. It can be easily controlled, adjusting the required temperature, minimum speed and the pressure of your room on four knobs. This fan controller can by used also as only air out regulator on two fans if there is a nature way of air in.

Two internal temperature sensors prevent from overheating on the heat sink and processor side. The controller comes as a finished part and is ready to use. This reliable fan controller comes complete with a sealed water resistant cover, plugs with flap-lids and a low voltage sensor making it perfect for humid rooms. The sensor comes with a 4meter long cable.

Watch tutorial on YouTube:

Sizes and technical datas:
Case: WxHxD = 130x92x105mm
Controller: WxHxD = 160x130x105mm
Designed for: 10A / 2x1150W / TRIAC 2x16A
Volts: 230V / 50HZ
Digital sensor 5V Measures temperatures from –55°C to +125°C (–67°F to +257°F)
0.5°C accuracy from –10°C to +85°C
Protection class IP54

Settings range:
Temperature: 20C° to -30C°
Minimum speed: off, 20% to -100%
Negative pressure: 100% to -50%

Technical Datas:

Pmax 2 x 1 A
VAmax 2300W
Umax 230V 50Hz
IP class 54
