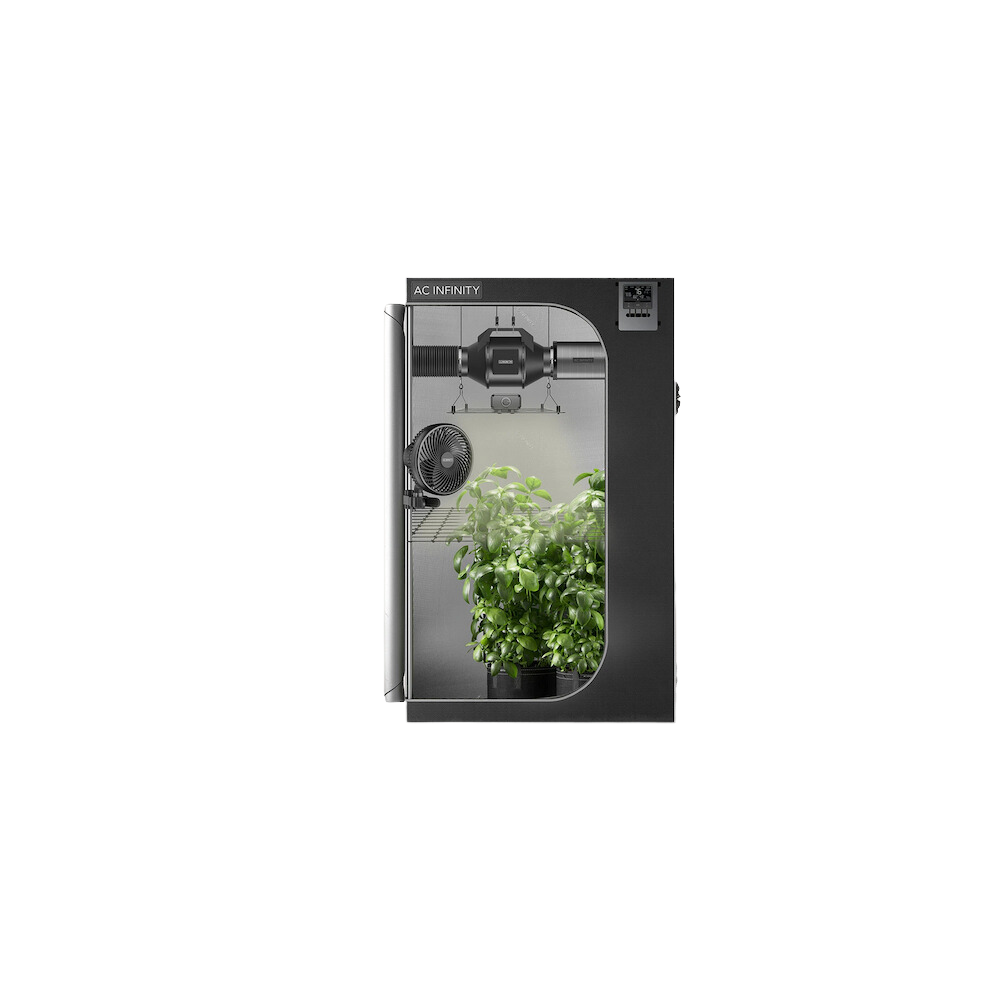

AC Infinity - Advance Grow Tent System 60x60x180, 1 plant set

An advanced grow tent system with intelligent control options to manage your grow environment and ensure ideal growing conditions for a successful harvest. The inline fan, activated carbon filter and ventilation ducts control the climatic conditions in the tent by removing heat, humidity and odours from the tent. The oscillating clip-on fan circulates the air inside and provides a gentle breeze for your plants. Algorithmically selected and arranged LM301H diodes on the grow light board emit powerful LED lighting over a wide area to simulate natural sunlight and optimise growth. These components are housed in a high-density Oxford tent equipped with a sturdy steel frame and Mylar walls to create a climate-controlled grow room.

INTELLIGENT PROGRAMMING

The CONTROLLER 69 PRO is the centrepiece of these components and allows all units to be programmed together or independently. This central control unit can set dynamic programmes that activate your grow devices in response to vapour pressure deficit (VPD), temperature and humidity, helping you to create your ideal grow room. Timer, cycle and schedule modes allow customised activation on demand for a variety of indoor growing purposes. Securely connect to the AC Infinity app via WiFi to access your indoor grow system from anywhere outside your home and unlock advanced programmes, alerts, notifications and historical charts.

Complete kit

This package contains all the essential components to get you started quickly with your indoor grow without having to buy them individually.

The complete grow tent set contains the following components:

• CLOUDLAB 722 - Advance Grow Tent 60 x 60 x 180 cm (x1)
• CONTROLLER 69 PRO - Grow tent controller (x1)
• CLOUDLINE LITE A4 - Inline fan (x1)
• IONBOARD S22 - LED Grow Light Board 115 W (x1)
• CLOUDRAY S6 - Oscillating circulating air clip fan (x1)
• Activated carbon filter 100 mm (x1)
• Pre-filter cloths for activated charcoal filter (x2)
• Flexible 100 mm pipe, 2.43 metres long (x1)
• Hanging strap (x2)
• Rope clamp hanger (x2)
• 100 mm steel clamps (x2)
• 1.5 metre duct tape (x1)
• Velcro fasteners (x10)
• 182 cm UIS connector-to-connector control cable (x1)
• 182 cm L-shaped UIS control cable (plug to plug) (x1)
• 19 litre fabric pots (x2)
• Elastic trellis net 60 x 60 cm (x1)
• Black cable ties (x1)
• Micro-tip pruning shears (x1)

Technical specifications:

Manufacturer AC Infinity Inc.

Product name Advance Grow System B22

Manufacturer number AC-PKB22

Size 60 x 60 x 180 cm

Ventilation openings 100 mm & 150 mm

Viewing window 25 x 25 cm

Material

Outer tent material 2000D Oxford

Inner tent material Mylar

Material frame steel

Load capacity frame 75 kg

Product dimensions Inline fan

Connection 100 mm

Dimensions 19.0 x 30.2 x 17.6 cm

Cable length to controller 183 cm

Length of power cable 183 cm

Performance and technical data Inline fan

Total air flow 280^m3/h

Noise level 29 dBA

Maximum revolutions 2800 RPM

Static air pressure 324 Pa

Electrical voltage 100 - 240 V (50/60 Hz)

Power max. 35 W

Average power 18 W

Current 0.55 A

Power plug Schuko plug with CH adapter

Humidity range 35 to 85% RH

Temperature range 0 - 60 °C

Protection class IP44

L10 Life expectancy 67,000 hours

Product dimensions - Clip fan

Blade size 16.5 cm

Dimensions 22.2 x 26.6 cm

Power cable 244 cm

Product performance and technical data - Clip fan

Total air flow 552^m3/h

Noise level 31 dBA

Static air pressure 25 Pa

Electrical voltage 100 - 240 V (50/60 Hz)

Power 11 W

Current 0.15 A

Power plug Euro plug with CH adapter

Humidity range 35 to 85% RH

Temperature range 0 - 60 °C

Protection class IP44

Product performance and technical data - Controller

Number of individually controllable devices 4

Max. supported power 10 W

Input voltage 9 - 18 V

Output 1 W

Current 0.1 A

Humidity range 35 to 85% RH

Temperature range 0 - 60 °C

Product dimensions - LED Grow Light

Dimensions 30 x 30 cm

Power supply unit (driver) dimensions 18.2 x 4.0 cm

Product performance and technical data - LED Grow Light

Light cover 60 x 60 cm

Diodes Samsung LM301H

Number of LEDs 272

Power supply unit (driver) AC Infinity driver, model IB-150

Efficiency 2.7 µmol/j

Spectrum 660nm, 730nm, 3000K, 5000K

Power 115 W

Electrical voltage 100 - 277 V (50/60 Hz)

Current 0.94 A @ 120V | 0.47 A @ 240V | 0.40 A @ 277V

Power plug Schuko plug with CH adapter

Humidity range 35 to 85% RH

Temperature range 0 - 60 °C

Life expectancy 50,000 hours
